Could Some One Enlighten Me Please

[sonofsam 5]

hello,just got round to attaching my clutch cable to pedal,have read up here,but...



im sure i've got the right BE3 cable because the bulkhead fitting is spot on

but how does it attach to pedal,i snapped my last cable because i had the wrong type clutch



wich left me with white plastic bit broken??



if anyone could let me know i would rather appreciate it,i cant fathom it

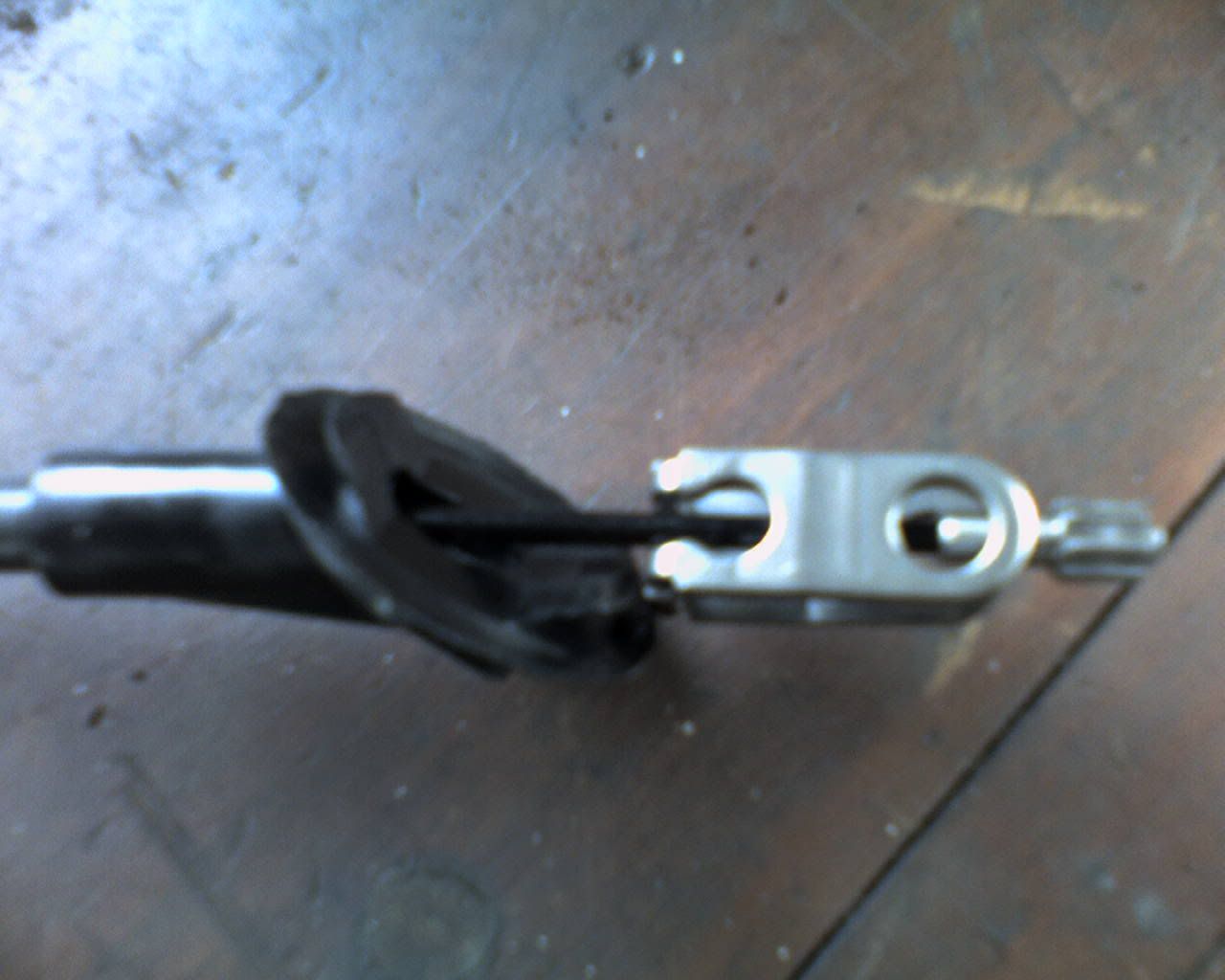

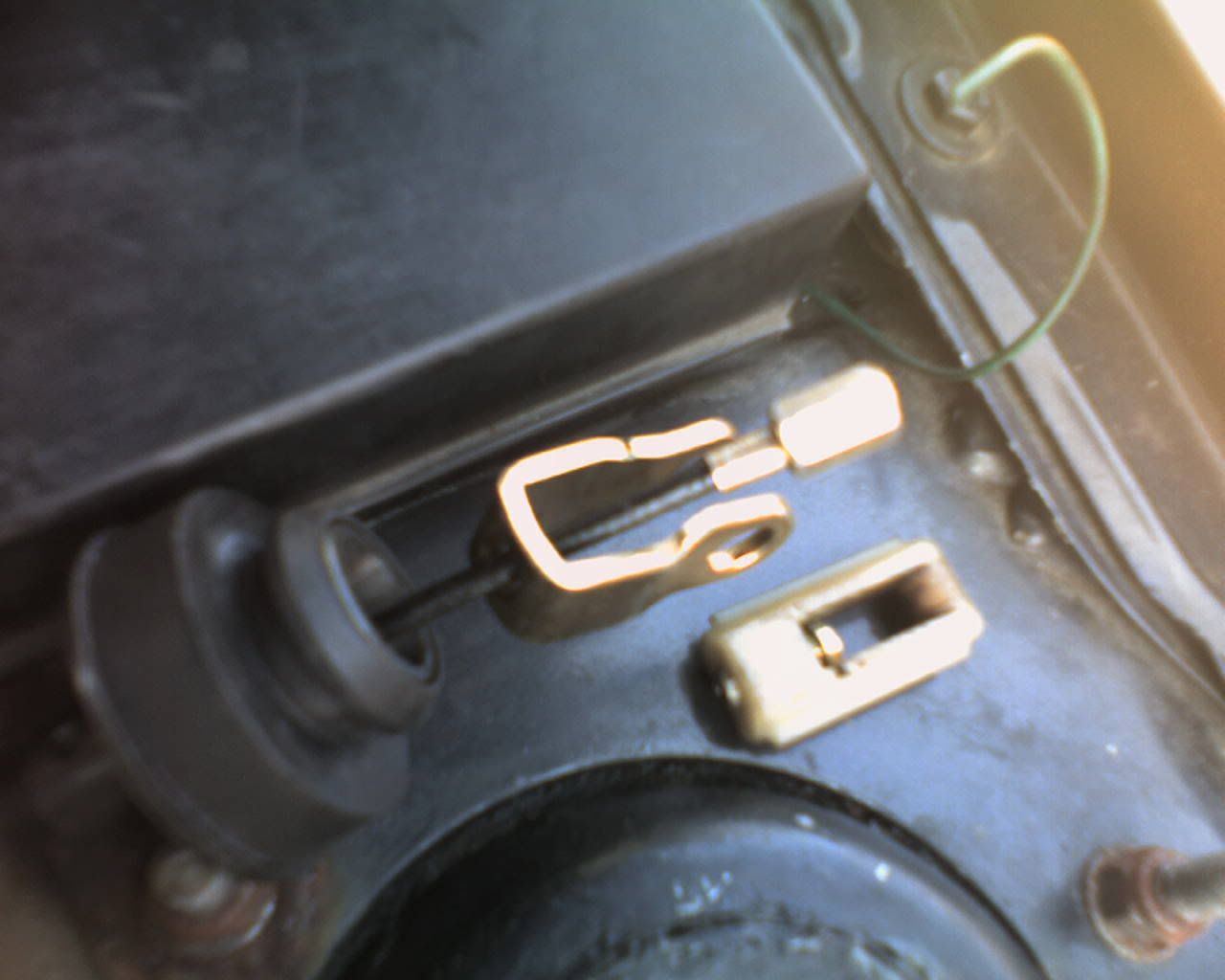

pic



Thanks in advance

Sam.

[Hilgie 16 2 Cars]

that, my friend, is a BE1 cable!

[sonofsam 5]

that, my friend, is a BE1 cable!



poop, and this one has the angled plastic bulk-head fitting !



argh the Frenchness of it all .Off to the shops for me then

[sonofsam 5]

I ordered up a new BE3 1.6 cable from ECP, the pedal attachment was the right one

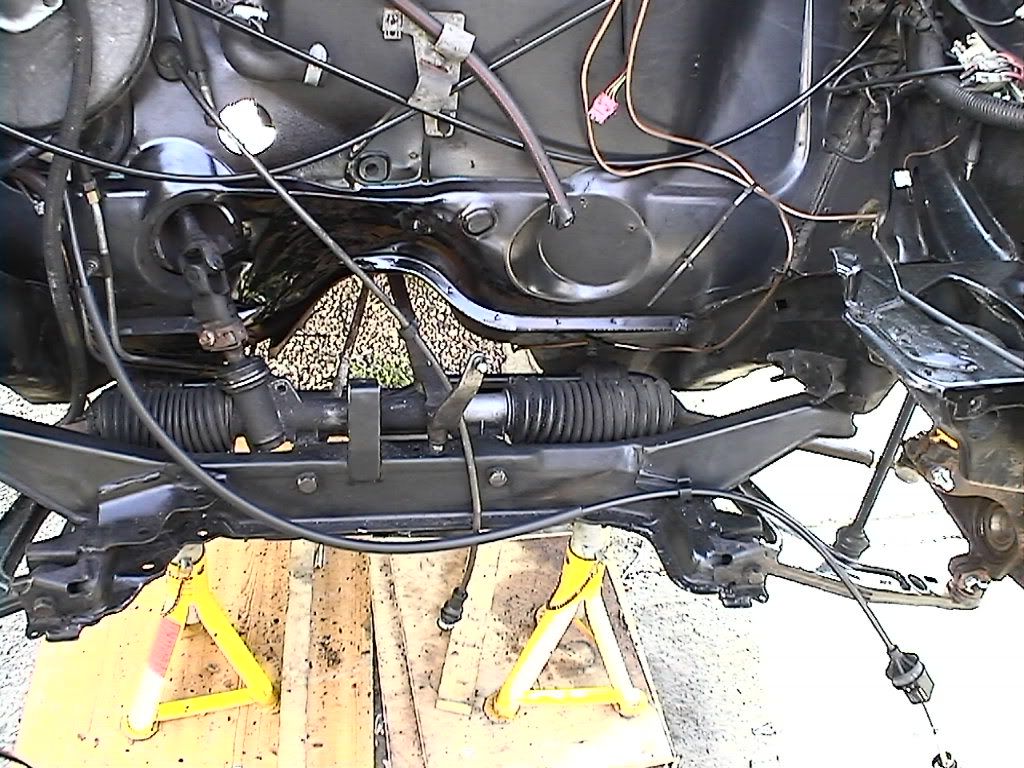

But does it look a little short pic ie were it goes along the subframe and has extra padding on the cable



So would i be right in thinking ...



Rubber bung bulkhead = 1.6

Plastic angled bit = 1.9 ...i only say this, as i have both on BE1 cables.



Cheers

Sam.

[pug_ham 245 3 Cars]

I recently fitted a new cable to a friends 1.6 with a Be3 & the new cable was a little on the short side but it fitted Ok in the end.



I think some places stock two lengths of clutch cable & the shorter one is default first send.



I got a Be1 cable from GSF a few years ago with the angled end & it wouldn't fit my car at all. Went back to swap it for a Be3 with the old cable & they didn't stock any with the right bulkhead grommet.



Got a refund, went to a different french car spares place & got the right cable straihht away without them even seeing the old one (& for less).



Graham.
