Yellow Instrument Cluster Connector (PH2?)

Recommended Posts

soundguy

When I look at this article



https://www.205gtidrivers.com/articles/articles-guides/body-interior-ice/instrument-panel-explained-r46/



this appears to be for the PH1 cluster - blue plastic flexible circuit, mine has the green flexi circuit.



For instance on my yellow block the second pin is for the fuel gauge - in the article fuel gauge is pin 6.



Any ideas what that the first pin is on the instrument yellow block is please? Its a pale blue/pale turquoise wire.

Share this post


Link to post
Share on other sites

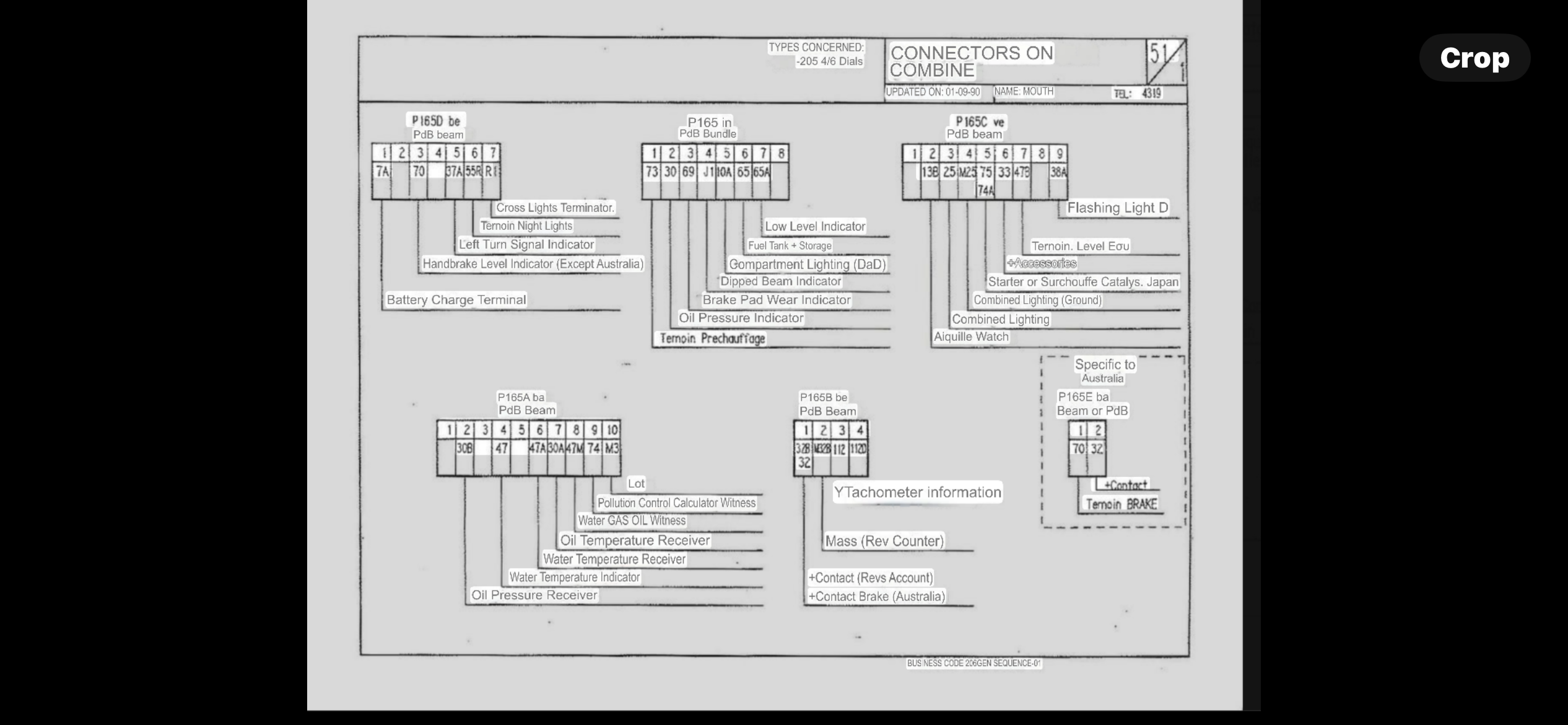

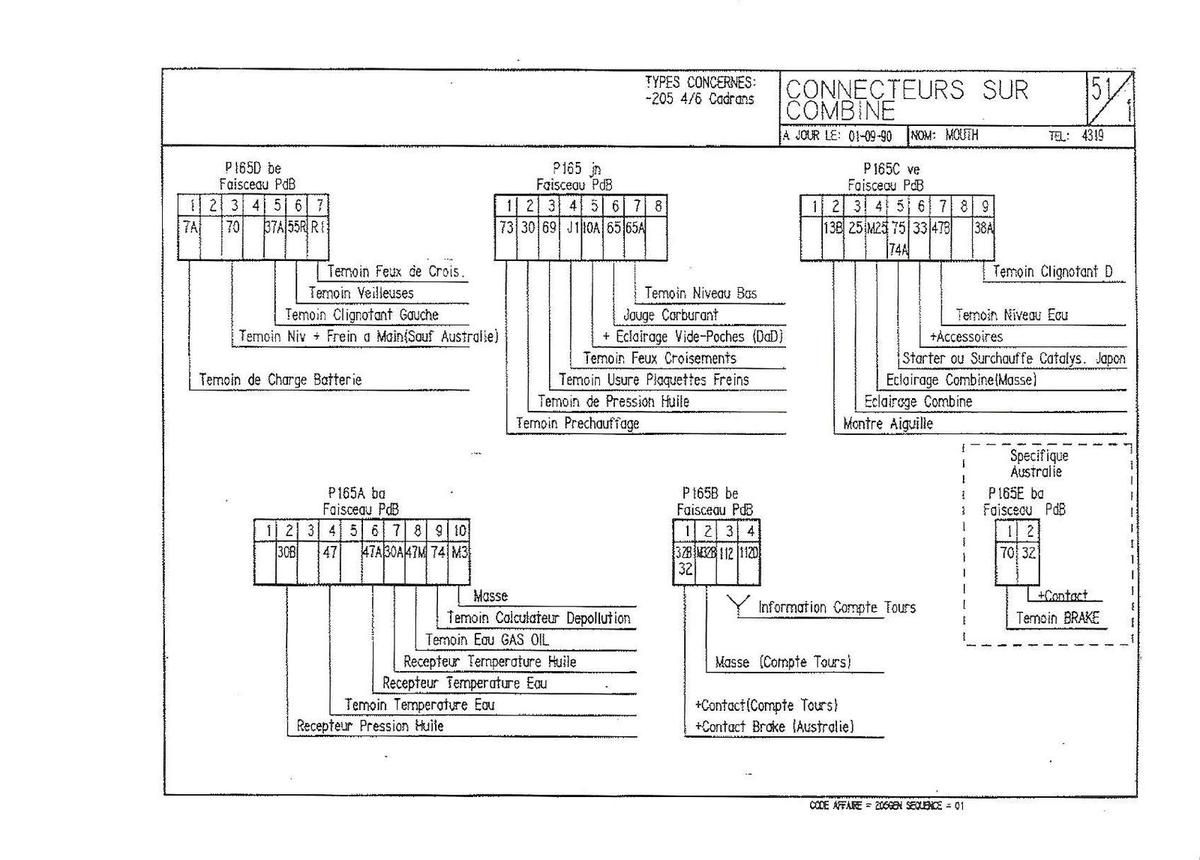

pug_ham

Can you find a number on the wire?



g

Share this post


Link to post
Share on other sites
soundguy

Nothing on it. I've accidentally pulled the other end of the wire out of whatever it was wired into, and my yellow block has been cut from another loom + transplanted into mine. I'm assuming the first wire into the yellow block was actually pale blue/green/turquoise because mine is connected to a red wire with a barrel connector, which then connected to the yellow block.



If I can find where the pale blue/green/turquoise wire connects to and from, hopefully I can get the instruments to work properly without over reading + moving in time with the indicators. At least, it would be something to cross off the list.
