It's Saturday night, it's time to Name That 205 Part!

[DSYKES5500 22]

I've acquired a bag of 205 parts and I'm not sure what they are or where they go.  Some may not even be 205 bits.  Could you help if you recognise any of them please?  I've numbered them to make it easier



Thanks!

Edited August 29, 2020 by DSYKES5500
Add extra pictures

[acox99 74 1 Cars]

2 - engine mount buffer

5 - brake line clip

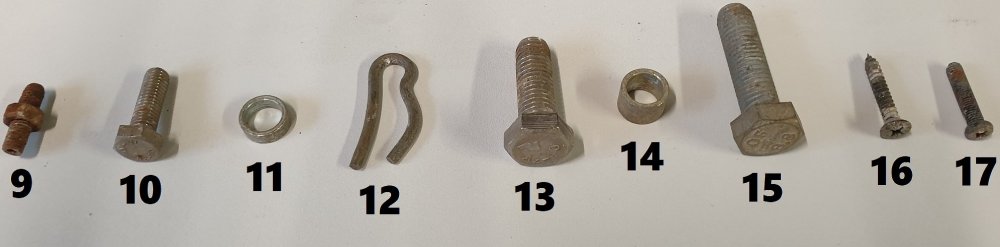

11 - seat belt mounting spacer

12 - hub nut r clip

16 - seat plastic trim screw

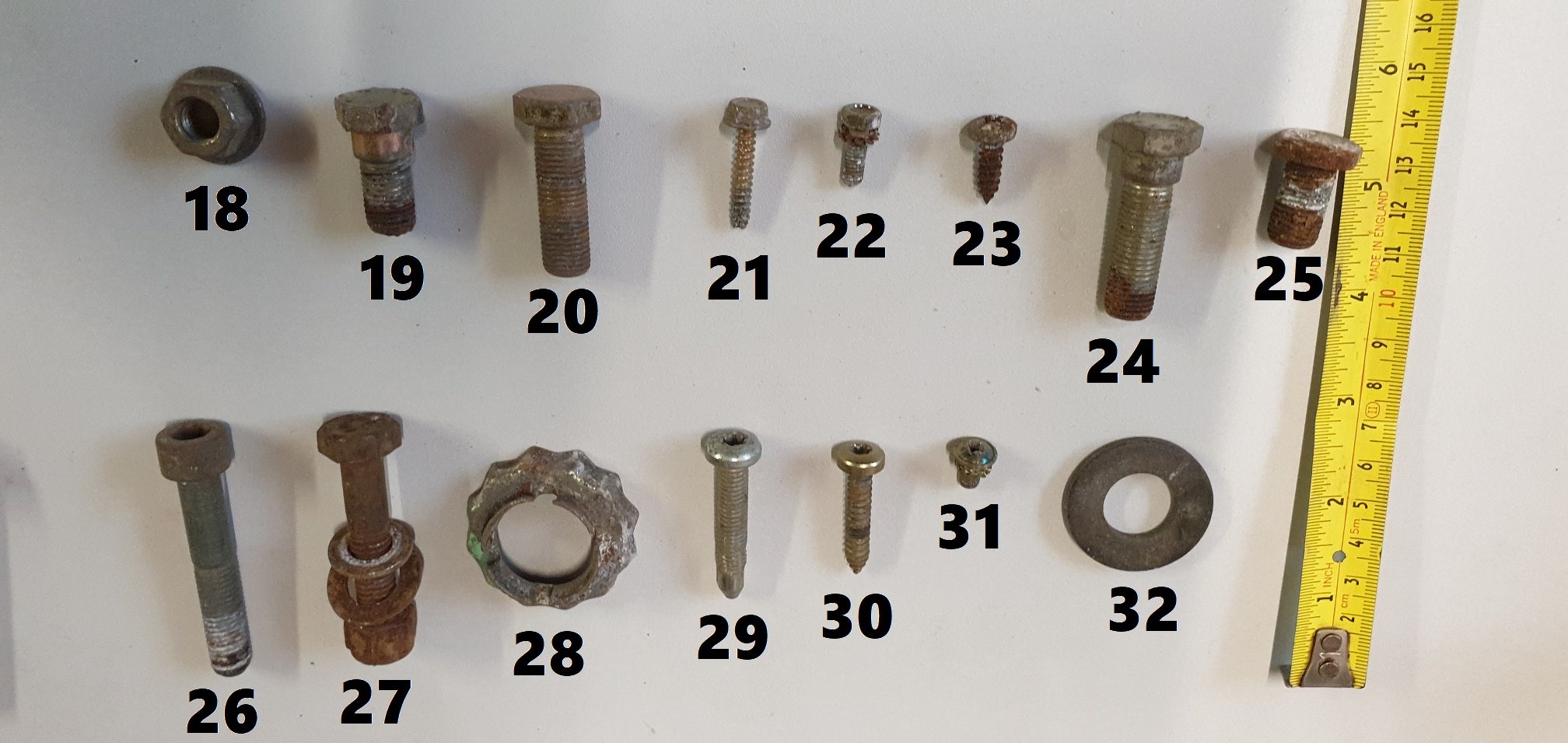

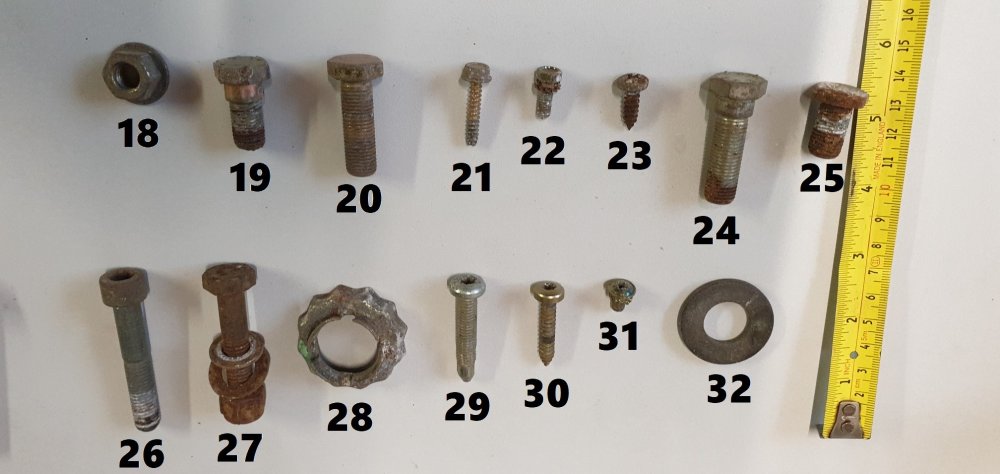

18 - engine mount/rear beam mount nut

19 & 24 seat belt mounting bolt

28 - hub nut cover used with r clip

30 - rear spoiler screw

39 - sunroof screw

46 - brake flexi pipe clip

47  - seat belt mounting bolt

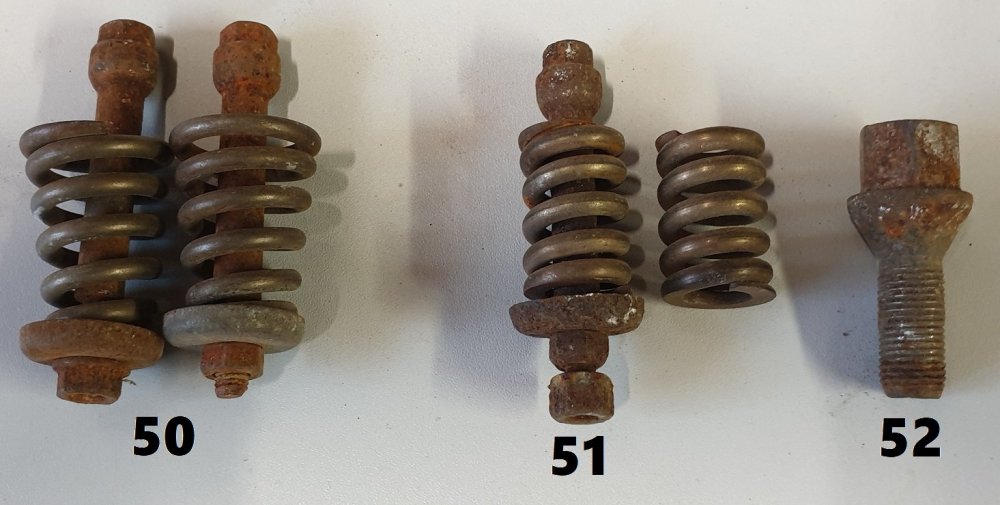

50 & 51 Exhaust manifold to down pipe fittings

52 - wheel bolt non Peugeot







[Dale 14 1 Cars]

Is 14 a spacer for the seat belt bolt? That's all I've got and it's probably wrong!

[bacardincoke 42 1 Cars]

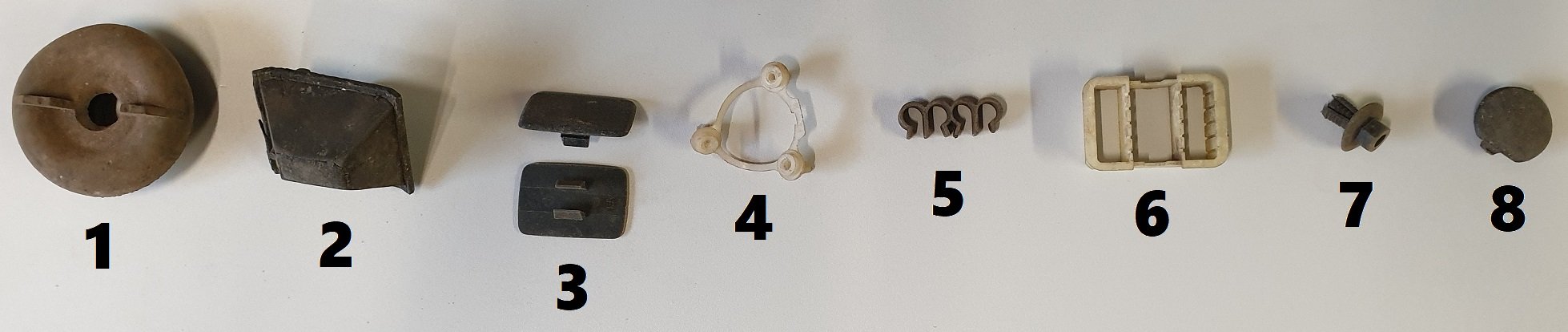

3... Grab handle blanks

4... door mirror spacer

6... surround for earthing tree

8... grommet for central hole in rear valance above number plate

31.. possible screw that occupies small hole in sinroof tray that accessory visor brackets attach via.

33.. lower dash piece push in connedtor?





Edited August 29, 2020 by bacardincoke

[Ozymandis 97]

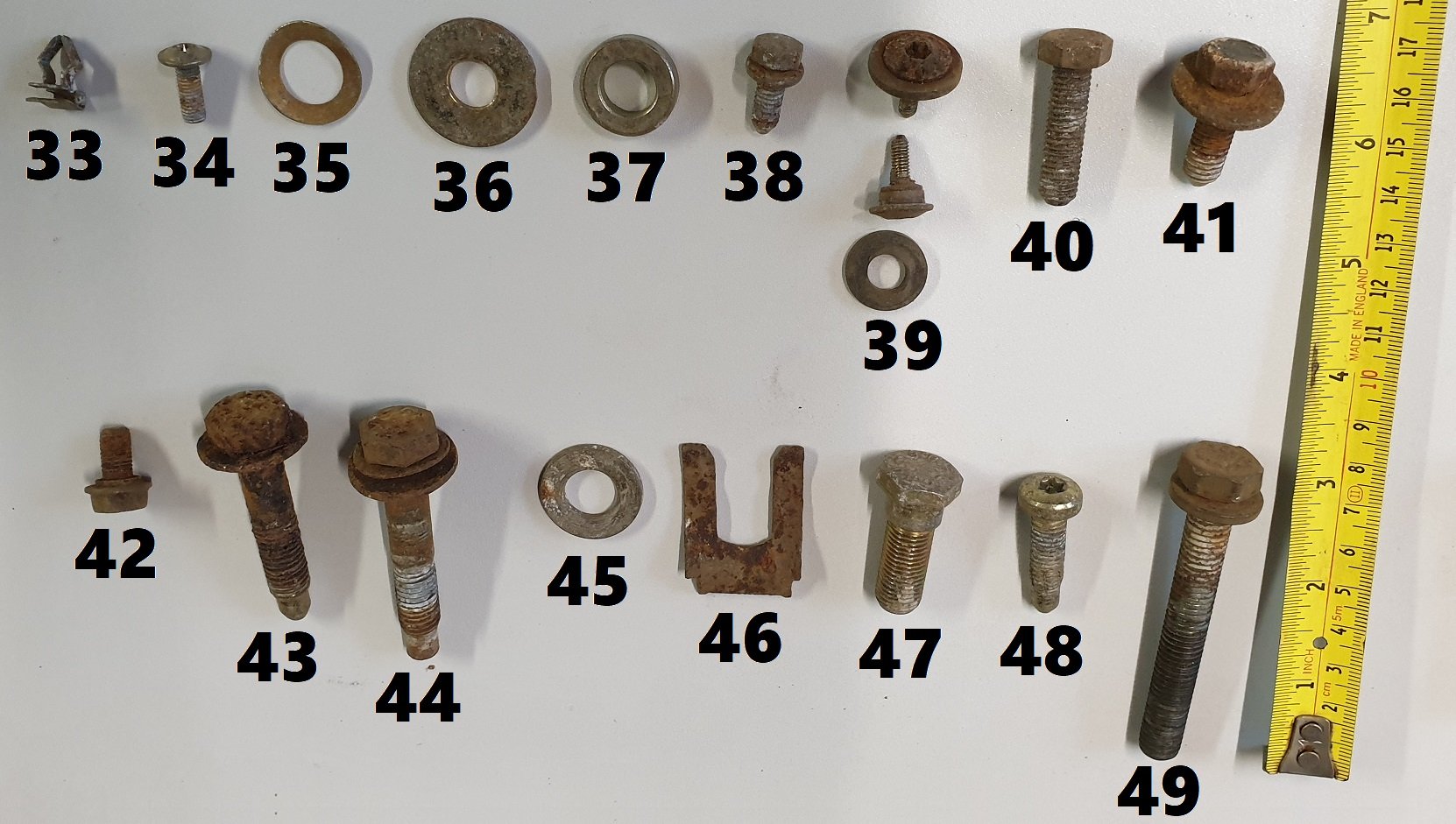

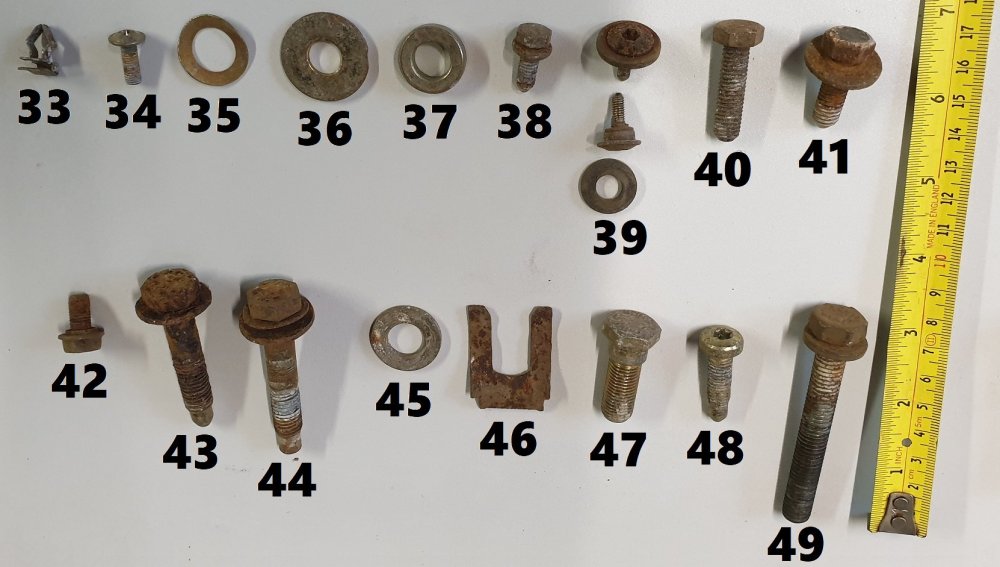

35.. Gear linkage, subframe pivot point bolt spring shimmy washer.

48.. Front seat fixing

25.. Seat belt stalk to seat Possibly

[boldy205 75]

2: Master cylinder dust boot.

52: wobbly wheels!!

[Gohn 68]

1 - the firewall seal for the throttle cable, inside the cabin above the accelerator pedal. (replaced mine last night)

52 - looks like a single lonely wheel/lug nut for the old 'cheesegrater' 13" rims from the non GTi models

46 - might be one of the door hinge or striker plate fixing bolts

[DSYKES5500 22]

With 52 I can finally say on an ebay auction Place a bid and you will receive a wheel bolt

[JeffR 51]

41. Front guard mounting bolt to inner wing.

46. Clutch cable adjuster plate on gearbox.

[Ozymandis 97]

2 hours ago, JeffR said:



46. Clutch cable adjuster plate on gearbox.

No its a flexible brake hose mounting clip.

[DSYKES5500 22]

Thanks everyone, this has been really helpful.  I know which to take to the metal finishers to have plated and which plastic/rubber bits to keep and clean up.
