Oil connection on xu10 block

[Daniel306 12 1 Cars]

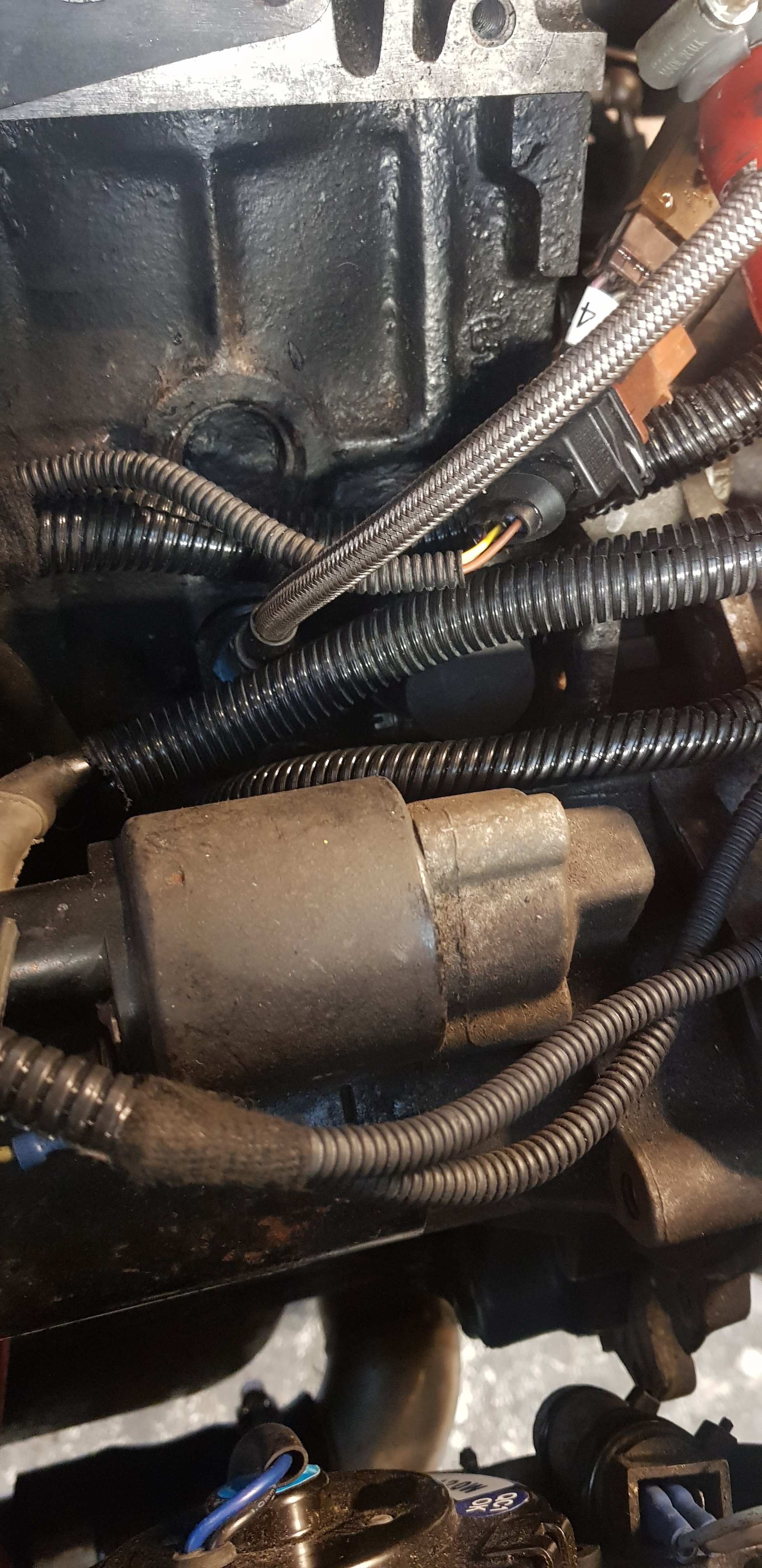

Can I connect the 205 oil separator/fill pipe to the connection behind the stater motor rather than using the one beside the oil filter? I'd like to swap the blank cap iv got to the bottom one and use the top

[Daniel306 12 1 Cars]

[petert 588]

That hole is directly into the oil gallery. It's used for an oil pressure switch, turbo oil feed etc.

[Daniel306 12 1 Cars]

To the right of it, the hole tha's caped off

[welshpug 1,661]

sounds like the standard oil breather port that the 16v engine uses, they use the main large one on the front as well.



you really don't want the fill point there though, its so small!

[Daniel306 12 1 Cars]

The 25mm pipe fits on it same as the bottom one?

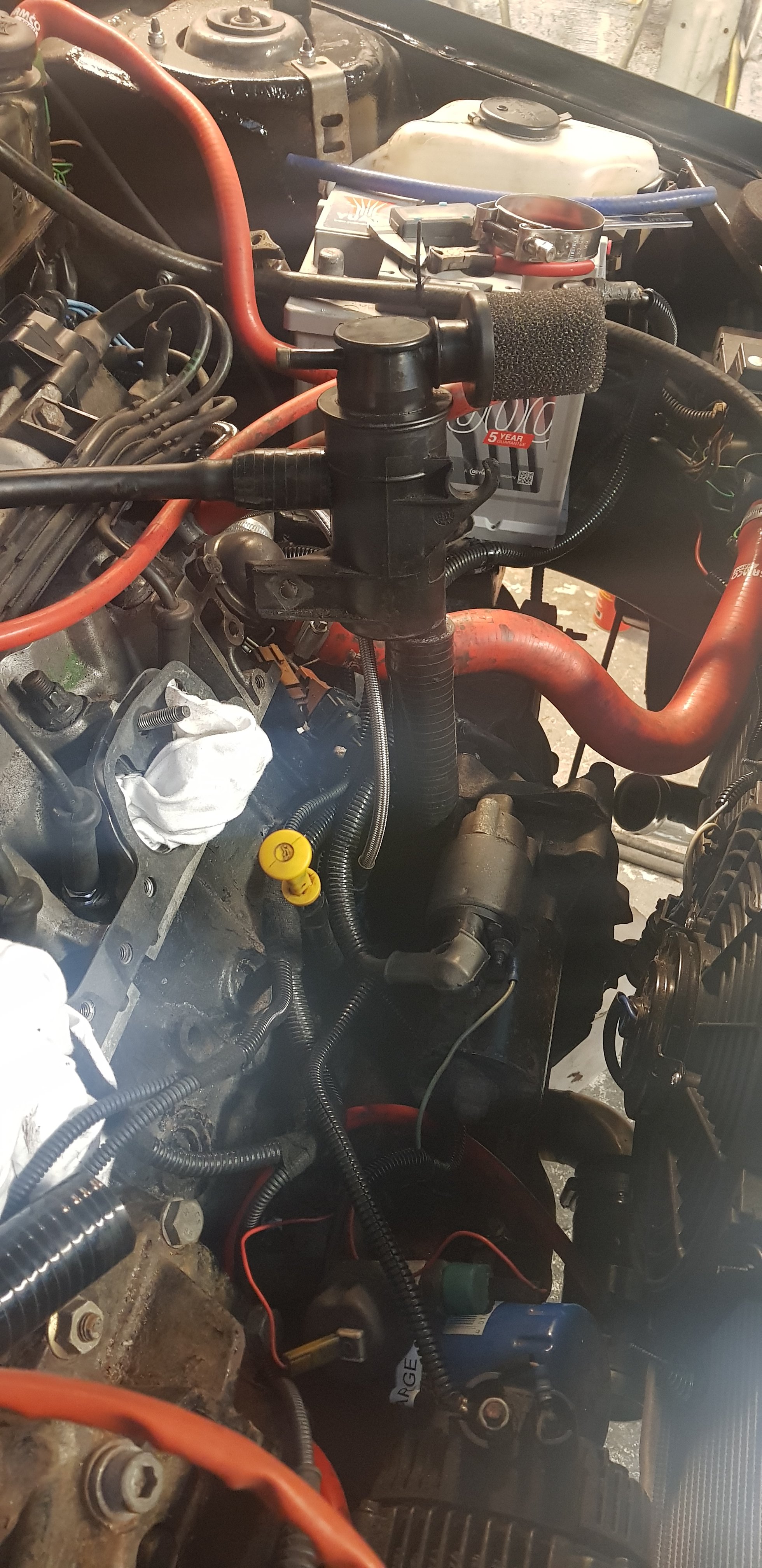

This is what I'm hoping is going to work





Edited May 23, 2020 by Daniel306

[calvinhorse 870]

That little filter will blast oil out everywhere, it’ll need to go to a catch tank or back into the inlet

[Daniel306 12 1 Cars]

The oil separator actually works really well

[calvinhorse 870]

I’m not sure how you’d know that when you’ve not used that set up yet but ok
