Pictures Of The Wiring Behind The Dash And Around Column?

[B1ack_Mi16 67]

Anyone got any pictures to share of the wiring behind the dash and around the steering column.



I've got a feeling I'm not getting it 100% correct so would be beneficial to see how it really is supposed to be.

Sadly I didn't take pics of it back in 2007 before disassembly....

[Cobalt_drill_bit 7]

Hi Kristian,

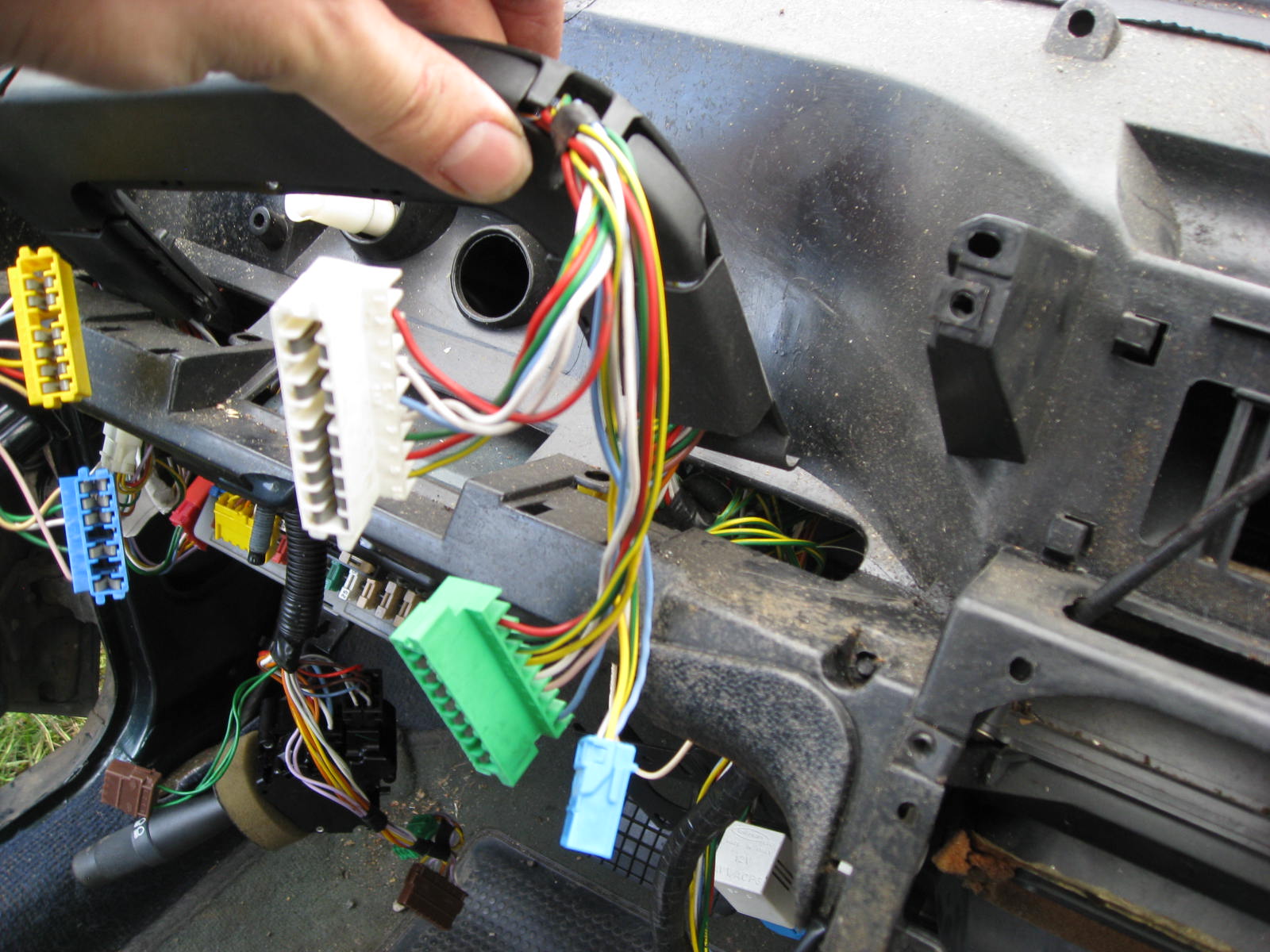

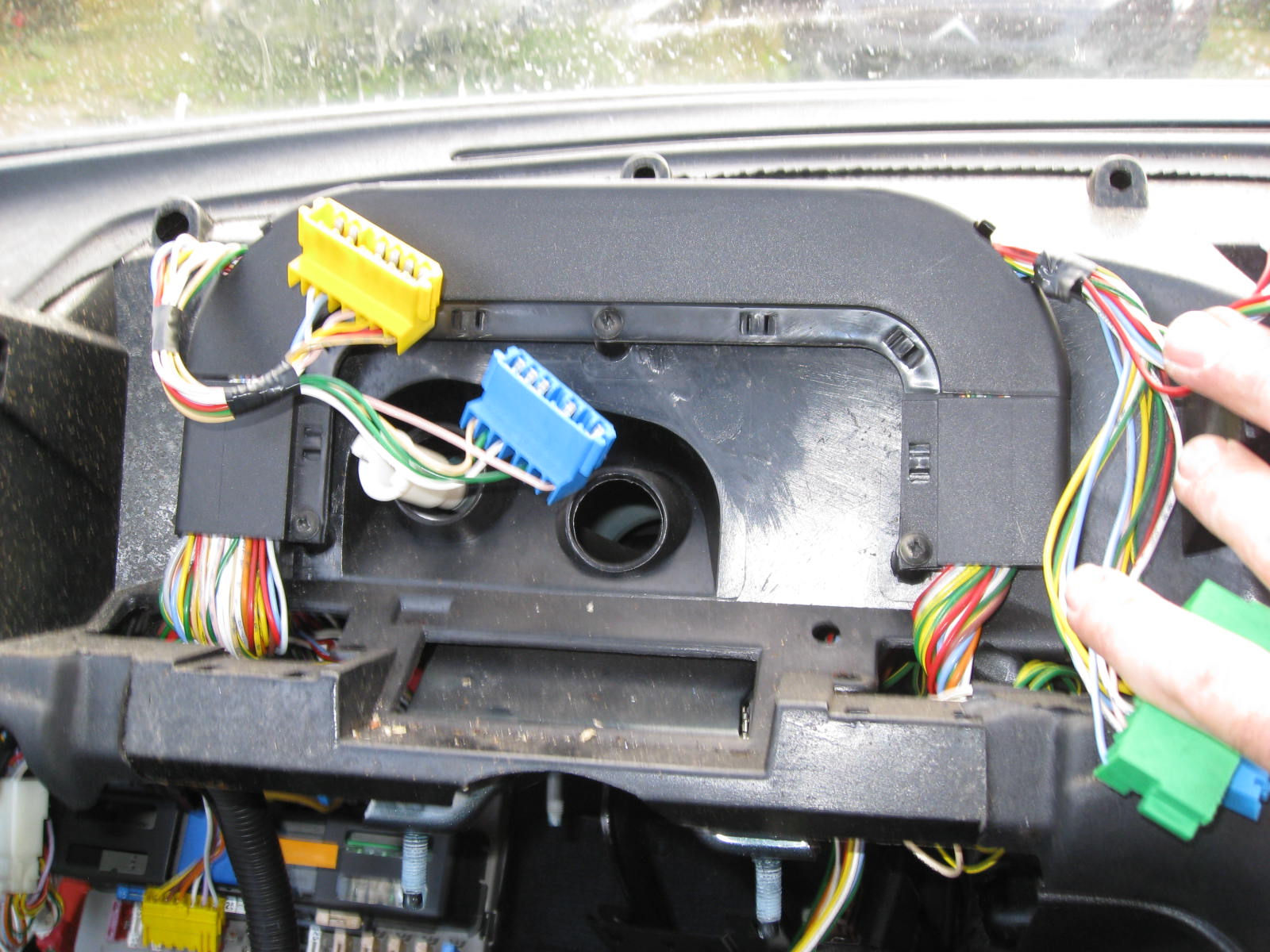

I hope I can help you with the following pictures. I took an instrument panel as well as the full cable harness out of a salvage yard Peugeot 205 1.4 XS automatic. However the 1.4 XS claim I'm not fully sure of.



I hope you have everything complete to put it correctly back in. I have to say that I was pretty amazed how careful this harness was installed even on a french car :-)



Still, I would like to know how comparable this is to a true GTi version.



Regards, Maarten



Edited November 22, 2017 by Cobalt_drill_bit

[cybernck 402 1 Cars]

Here's a pinout list, so you can also double check what's what:



[B1ack_Mi16 67]

9 hours ago, Cobalt_drill_bit said:

Hi Kristian,



I hope I can help you with the following pictures. I took an instrument panel as well as the full cable harness out of a salvage yard Peugeot 205 1.4 XS automatic. However the 1.4 XS claim I'm not fully sure of.



I hope you have everything complete to put it correctly back in. I have to say that I was pretty amazed how careful this harness was installed even on a french car :-)



Still, I would like to know how comparable this is to a true GTi version.



Regards, Maarten





Thanks a lot. That at least uncovers about 20% of my wiring routing uncertainties



Not done anything more on it lately as I'm working on exhaust and enginebay layout.
