309 Gti Front Arb Clamps Which Ones Which?

[Castorkid 11 1 Cars]

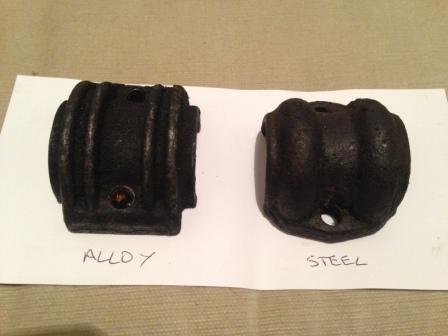

I bought these clamps with a 309 gti front arb from a forum member which I have never used. Its now up for sale on the forum. I never looked closely at the clamps but I now notice that they are different shapes. One is steel and the other is alloy. Both fit the bushes fine and the bolt hoes are in the same place. Does anyone know the models they came off?

Thanks for your help.

Nick

[j_turnell 136 3 Cars]

I've only seen the steel one's which I've found on gti's

[welshpug 1,656]

just production variances, od of all the bushes are the same, its the i.d that makes the difference

[Castorkid 11 1 Cars]

Thanks both.

[Castorkid 11 1 Cars]

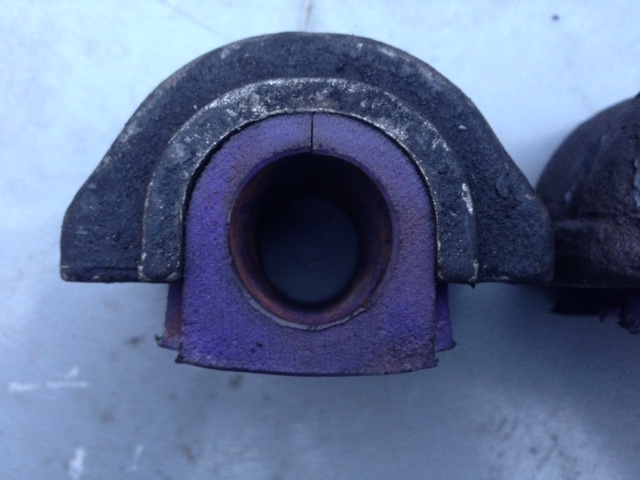

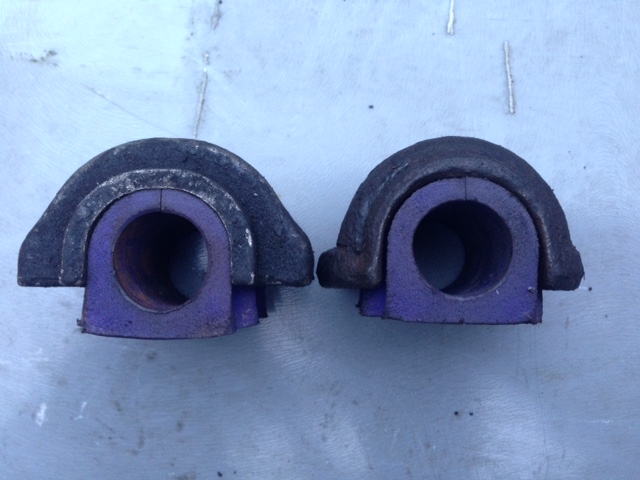

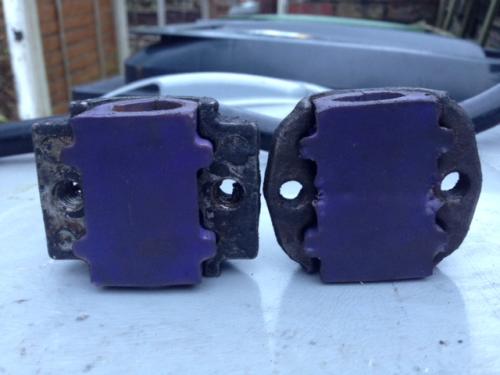

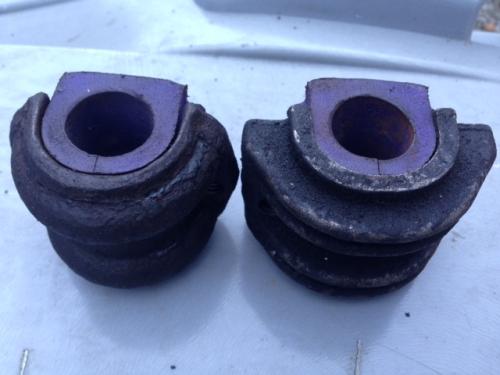

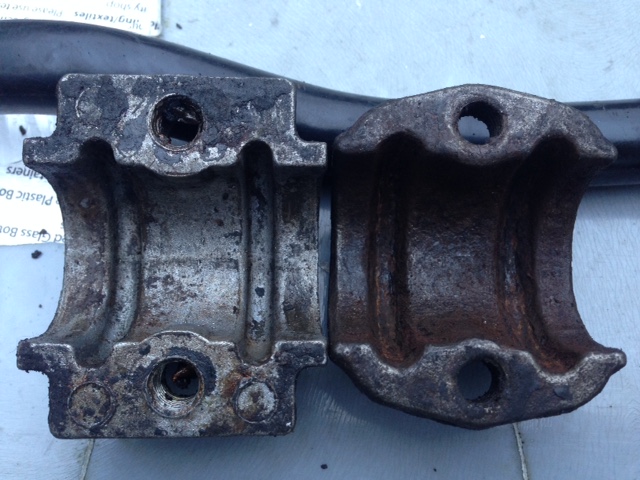

Further images of 309 ARB clamps...

[Castorkid 11 1 Cars]

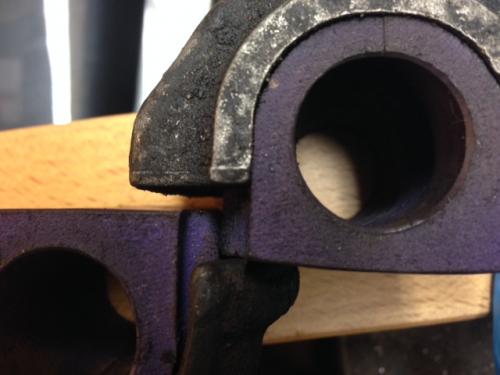

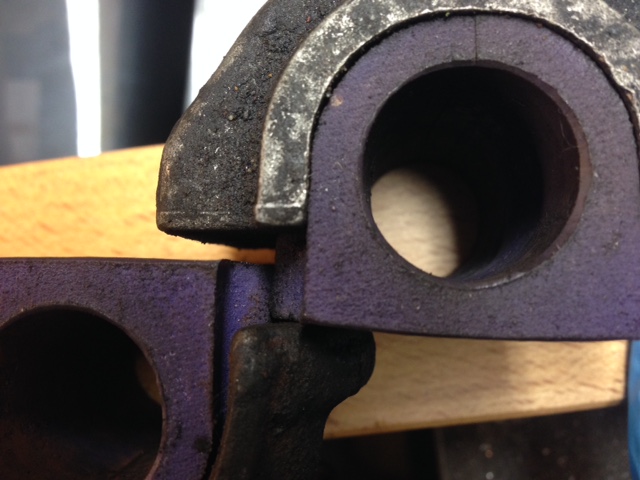

Further to my previous post. On closer inspection, the alloy clamp seems to be shorter in the vertical dimension than the steel one. Bushes seat fine in both. Never seen the alloy type before. Can anyone provide any more information to help identify these parts?

Many thanks

Nick
