Injector Firing Order

[eastlondonpug 6]

Hi



I am trying to identify whether swapping injector wires 1 with 2 ; and 3 with 4 would make a difference in engine running.



It seems that when rebuilding my head, I might have wrongly swapped these as above. I have only found out since I have been comparing some before and after pictures of my engine rebuild and they are definitely swapped over as my injector connectors are colour coded. 2 are green and 2 are black (from another loom).



From what I understand, Mi16 engines fire the injectors semi sequentially i.e. 2 at a time.



Can someone please confirm if there is an easy way of checking what goes where?



Thank you

Edited March 23, 2015 by eastlondonpug

[jackherer 543]

1.9 Mi16s batch fire, i.e. all at the same time.



If you follow the wiring back along the loom you'll find they are all joined together.

[Tom Fenton 1,541]

Agree with the above statement re: 1905cc Mi16, but the later iron block 1998cc "Mi16" engine aka the 306 S16 has a cam sensor and is I think semi-sequential.

[eastlondonpug 6]

Thank you



I have the 1.9 mi16 so happy to know that the wiring will not make a difference.

[petert 586]

Batch or multi-point? I thought the term batch meant "in batches" or groups. ie 1-3 and 2-4



in any case, 1.9L fire simultaneously



I thought 2L was full sequential ie 1,3,2,4

Edited March 24, 2015 by petert

[welshpug 1,657]

yup, full sequential injection and spark with mp3.2 on the 2.0.



multi point means more than one injector, I.e not spi - single injector in a throttle body, a modernised carb

[petert 586]

multi point means more than one injector, I.e not spi - single injector in a throttle body, a modernised carb

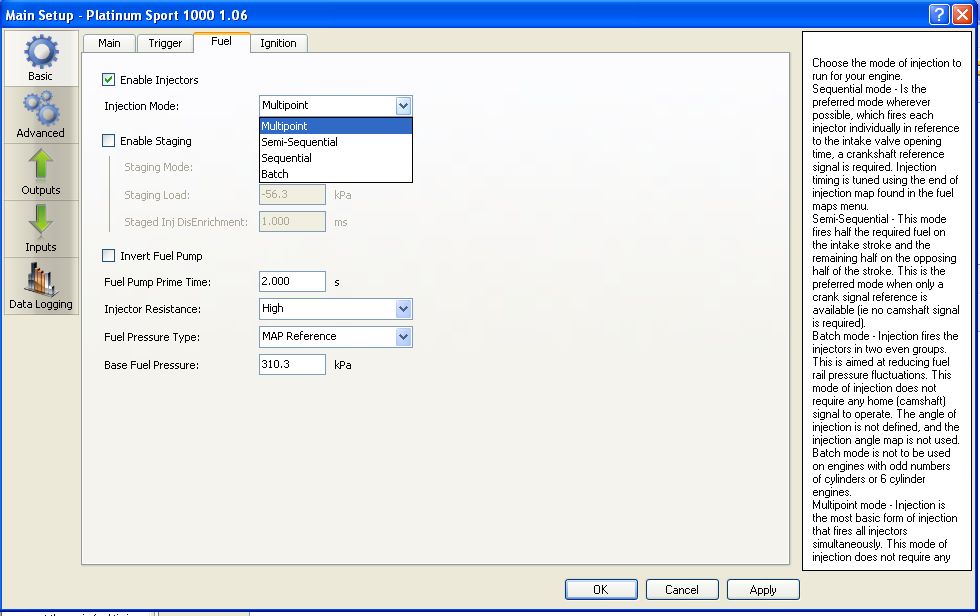

You might think that, but you're wrong. My software has options for all. Can you read the column on the side?

[welshpug 1,657]

ahh, I see you have an Australian ecu, that explains it

[petert 586]

Yes, it's the only Aussie brand that lowers itself for other markets. Motec and Autronic are sequential only. Never has been an option.
