205 Gti Taken Apart - Great Shot!

[cybernck 402 1 Cars]

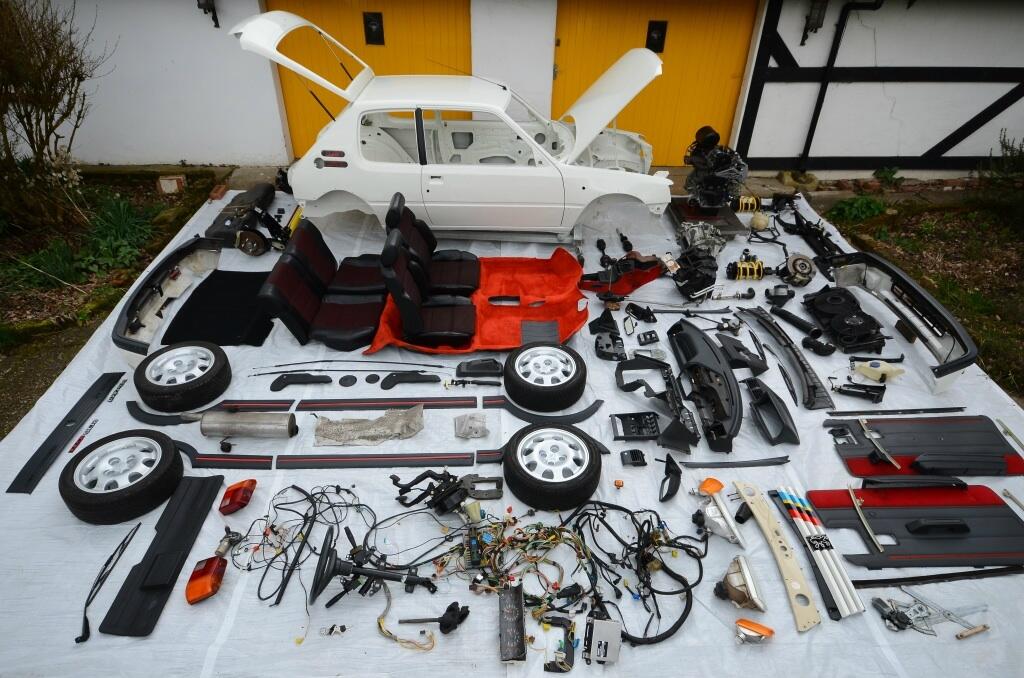

Found on Twitter:



[jackherer 543]

That's very cool, it makes it look like it'll just be a couple of hours work to throw it all together

If those are the original parts it has to be from August '89 to September '90, probably on a G plate if it's in the UK, they didn't fit those seats with the early lights and grey trim for long, it was an odd combination.

[Rjuhar 52]

Great shot. Is it possible to get a full-size photo please (for personal use!). Thanks

[Davy 18 1 Cars]

Thats excellent!.. Would be nice to have a bundle of minty fresh parts just sitting ready for assembley! Shame the carpet's a bit orange looking tho... Taking the next step would be for a collector / museum to have all the mint bits in a display, suspended in a 3D 'exploded diagram' style!!...

[dcc 855]

Even they couldnt get the reat quarter badges off.

[allanallen 528 2 Cars]

That's very cool

Edited March 5, 2014 by allanallen

[GLPoomobile 958]

That's pretty cool, and my first reaction was thinking it really didn't look like there's much to a 205 when you see it like that. But when you start studying it in detail you realise that there IS more to it, that isn't pictured, and of course it's not fully stripped to it's individual component parts. Little things like nuts, bolts, screws and trim fixings all add up when they are put together in containers.



Did I just strip the fun out of this?

[jackherer 543]

The glass is the largest absent part I can see.



Rear quarter interior plastics are missing too I think.

[pyrrhic 14 2 Cars]

A bit of model glue and you have your self a project! Neat shot!

[RossD 44]

I may be blind but most of the exhaust except the backbox is missing too.

[chipstick 382 1 Cars]

Can someone photoshop a frame between and around the parts so each individual bit snaps out for assembly like an airfix model?

[Edp 67 3 Cars]

Worth more in parts

[Slo 283 1 Cars]

I want to see the pot that all the nuts and bolts went into must be as big as a washing up bowl

[1 FAT PUG 39]

3d print it haha

[aarontrophy 26]

thats well cool mite have to try that next time i strip the 205
