Wiper Motor Wiring

[petert 601]

In the quest for removing weight from my race car, I decided to ditch the stalks and most of the wiring in order to simplify things. I wanted the wipers to work, but still park. After a short, unsuccessful search on here, I found this interesting article:



http://iainseven.wordpress.com/2009/09/20/wiper-motor-wiring/

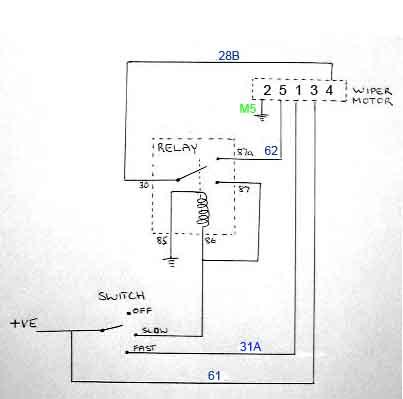

Given the 205 wiper motor also has five connections, I figured they must be similar, if not the same. A bit of multimeter work and testing with 12V soon had the answers. Here's the diagram reproduced with the correct numbers on the wiper motor socket and the corresponding loom numbers.
