*pic Request* Please Of Icv Locations 2.0 Turbo

[m_attt 31 1 Cars]

hi as the title could thoose with the sri/xantia turbo conversion please post some pictures of were and what they have plumbed the icv to. many thanks matt

[M@tt 77]

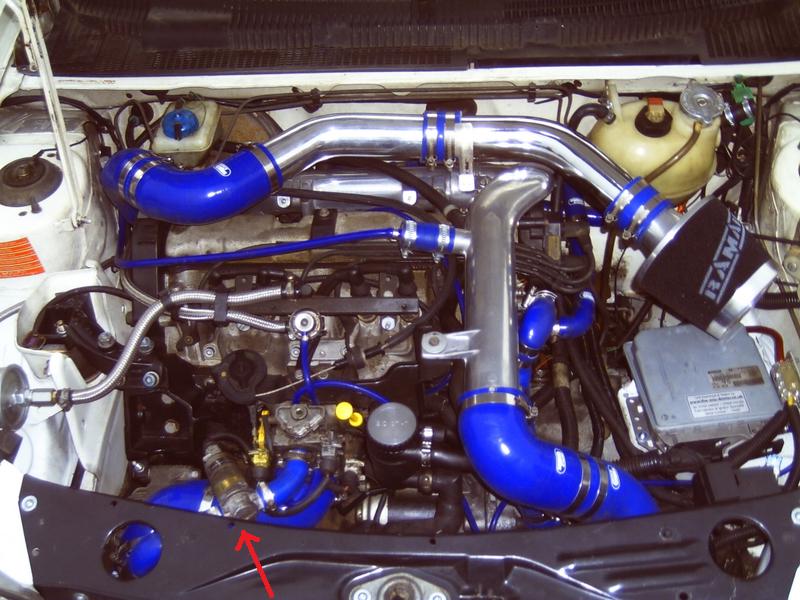

i had short aluminium pipe with 2 takeoffs made.



the dump valve came off one, the ICV off the other



[m_attt 31 1 Cars]

i had short aluminium pipe with 2 takeoffs made.



the dump valve came off one, the ICV off the other





is that instead of the aluminium pipe thats there standard, and where does the thin pipe of the top of the dump valve go. cheers matt

[Crazy-legs! 0]

I was lucky enough to have a dump valve output in the right place on the cosworth intercooler i'm using, so i just connected it to that.



hope this helps!



Marc.

[M@tt 77]

Yeah the standard 2wd I/C has a take off ideal for it. I chopped mine off but in hindsite i could have left it on.



My engine came from an XM so it has plastic pipes as standard so this pipe was to join the plastic pipe to the intercooler via 2 silicone joiners. Have a look at my project thread for more pics.



The vacuum hose from the dump valve goes to one of the takeoffs on the inlet manifold



Matt
